6-и осевой манипулятор с возможностью нагрева/охлаждения

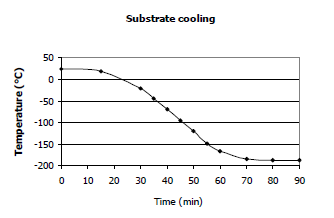

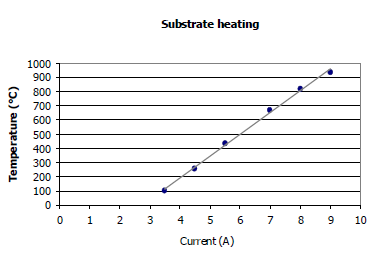

The UHV goniometer is a sample holder manipulator designed for very precise movements by 6-axis (three translations and three rotations). It is the perfect complement to analysis chambers since it provides, in addition to precise movements, a heating system of the sample up to 800 ° C (up to 1400°C wi th electron bombardment) and cooling to -180 ° C by li quid nitrogen.
Основные возможности:
- Ultimate vacuum 10-10 mbar
- Sample temperature From -130°C to + 1400°C
- Support sample 1" plate
- Heater type Electron beam bombardment 1"
- Thermocouple Type K
- X and Y translations ±17.5 mm motorized
- Z translation 200 mm motorized
- Translations repeatability 10 μm
- Main rotation ±170°
- Tilt ±10° motorized
- Spin ±95° motorized
- Rotations accuracy 1/100°
- Rotations repeatability 5/100°
- Sample biasing 500 V
